Parameter

1 Number of cutter：1只，OD:473mm±1mm

2 Tooth plate：1Inch12Film

3 Blade：24Film

4 Main motor speed：2950r/min

5 Power of main motor：30kw

6 Fan：Model9-19,4#,Equipped with a motor3kw

7 Fan off：ModelZGF，Equipped with a motor0.75kw

8 Output：PVC48-80目 150-400kg/h

9 Dimensions：Entire machine（L × W × H）3200×1450×2900

10 Weight:1200kg

Overview

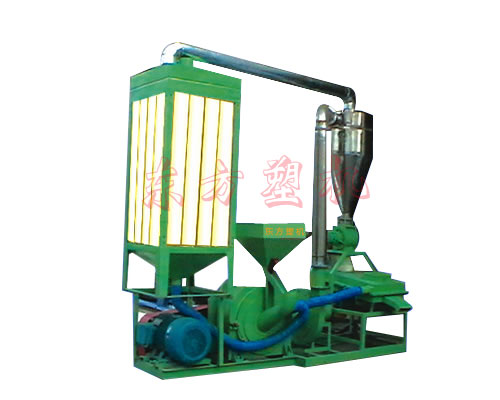

Our machine is the latest self-developed milling machine, its features are as follows:

1 compared with the same type of milling machine, in case of power production with a greater increase (yield 20% -50%), saving energy.

2 increased the dust collection device, effectively reducing dust pollution.

3 off blower discharging reduces the labor intensity operation.

4 host can open the door for easy maintenance and tool changes.

5 using feng shui double cold, good body work reducing the temperature, the grinding of the material is not easy to deformation, but also conducive to grinding heat-sensitive plastic, can be of some PE, ABS for grinding.

6 The plastic factory professional practice operated to demonstrate, a return visit in the processing of abrasive grinding add 20% to 30% of calcium carbonate, its products, new chemical materials have physical properties of the indicators remain unchanged, and Production can reach 150-400kg (40-80 mesh).

Therefore, this device is a plastic products factory will be the savings, the best equipment to solve the accumulated waste.
